Items without an OEM No. Reference: Air Deflection Tube through Magnetic Stablization Assembly
Epic Offers the following items for ICBT and/or Verdol machines:
OEM NO.	EPIC PART#		DESCRIPTION		ASSY		POSITION
		EE380075		Air Deflection Tube Device Complete, for 450		VE23		07
		EE380024-2		Anti-Wrap Device, S & Z, for Verdol 235mm Closed or Open Disc (2 Notches each side) (Uses EE309033 heavy duty blade)		VE06A		01
		EE380024		Anti-Wrap Device, S & Z, for Verdol 260mm Open or Closed Disc (2 Notch each side) (Uses EE309033 heavy duty blade)		VE06A		02
		EE340018		Anti-Wrap Device, S & Z, Heavy Duty for EpiMag		VE05A		06
		EE480247V		Back Plate Assembly for UniTensor		VE08		15
		EE380018		Base, Inside Magnet Pocket for EpiMag		VE05A		04
		EE380228		Base Shell Extension for EE380229 Adaptor		VE28		08A
		EE304120-2		Bearing, Upper Oblique, 16004C3, SKF		VE01		16A
						VE01A		13A
		EE309033		Blade, Double Edged - Heavy Duty for Anti-Wrap Devices EE380024 & EE380024-2		VE06A		03
		EE380091		Block, Cam Connecting		VE10		22
		EE380037		Block, End Support,for Traverse		VE10		23
		MV-1032CR		Bolt, C Creel Shoulder		VE15		28
		A-18362		Bolt, Carriage, 3/8" X 8"		VE14		30
		A-18173		Bolt, Carriage, 3/8" X 9.5"		VE15		08
		EE480003V		Bottom Numbering Strip for Tension Device		VE13		10
		EE380133		Bracket with Hardware to mount EE340035 Series Devices to Epic Style E Creel		VE21		01E
		EE380074		Bracket, Lower Support, for Epic Air Deflection Assembly for 450		VE23		09
		EE440009V		Bracket, Main Support, Heavy Duty, Traverse Guide		VE10		03
		EE380134		Bracket, Mounting, for Storage Tensor for Verdol and Epic Creel		VE21		06B
		EE440047-2		Bracket, Standard Cabler Cap Tension Device, 3-Post		VE08A		03
		EE305543		Brackets and Hardware to Mount Dial Storage Tensor to Verdol 400 Creel (does not include dial storage tensor or roller assembly)		VE14		40A
		EE305543-1		Brackets and Hardware to Mount Dial Storage Tensor to Verdol 400 Creel (with roller, without storage tensor)		VE14		40B
		EE380196		Bushing, Adaptor for Verdol Single End Up-Twisting Conversion		VE26		07
		EE380119		Bushing, Arm		VE21		10
		EE401874V		Bushing, Clear Urethane, for Cabler Cap Tension Device		VE08		14
						VE08A		14
		EE380119B		Bushing, DU, Arm		VE21		10A
		EE401673V		Bushing, Interior for Traverse Rod 10.4x14.1x15mm, 05-09, BA3-BA6		VE10		25A
		EE401668V		Bushing, Long Traverse, 16.4X22.1X22m		VE10		10
		EE480183V		Bushing, Threaded Brass		VE26		04
		MV-1021CR		C Creel Package Arm Assembly including Spring Bracket (Welded on Arm), U-Bolt Plate and Oval Handle		VE15		01
		EE401835-1V		Capsule, Straight Tension, Bulb Type, #0		VE13		02
						VE26		08A
		EE401836-1V		Capsule, Straight Tension, Bulb Type, #1		VE13		02A
						VE26		08B
		EE401837-1V		Capsule, Straight Tension, Bulb Type, #2		VE13		02B
						VE26		08C
		EE401838-1V		Capsule, Straight Tension, Bulb Type, #3		VE13		02C
						VE26		08D
		EE401839-1V		Capsule, Straight Tension, Bulb Type, #4		VE13		02D
						VE26		08E
		EE401840-1V		Capsule, Straight Tension, Bulb Type, #5		VE13		02E
						VE26		08F
		EE401841-1V		Capsule, Straight Tension, Bulb Type, #6		VE13		02F
						VE26		08G
		EE309072-0		Capsule, Tension #0 for Verdol		VE07		20A
		EE309072-00		Capsule, Tension #00 for Verdol		VE07		20B

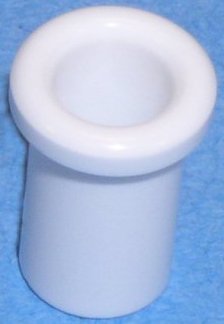

		EE401864V		Ceramic Eyelet		VE13		11
						VE23		03
		EE480000V		Ceramic Eyelet for Double Tension Device (5.5mm)		VE13		06

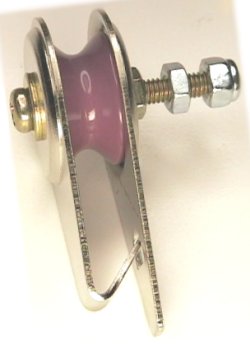

		EE980042V		Ceramic Roller and Bracket with Replaceable Ball Bearing		VE16		21
		EE401924V		Ceramic, Post/Tube, Pink		VE08A		07
		EE434402V		Circlip, External, 4mm		VE08		17
		EE434406V		Circlip, External, 8mm		VE16		02
		EE480018V		Clamp Piece, Mounting, for Heavy Duty Traverse Bracket		VE10		04
		A-18360		Collar w/Set Screw, 1"		VE14		03
		A-18359		Collar w/Set Screw, 3/4"		VE14		07
		EE301318V		Collar, Locking with Set Screw		VE11		05
		A-18463		Collar,Shaft, with Set Screw, 3/8"		VE23		04
		EE340016		Cone, EpiMag Magnet Mounting		VE05A		01
		EE380100		Coupling, Offset, Traverse Tube		VE10		21
		EE480055-2V		Coupling, Traverse Rod, with 2 Holes and 4mm Pins				11
		A-18233		Cover, End 400mm, Left Side, Gear End		VE11		12
		A-18235		Cover, End 400mm, Left Side, Motor End				14
		A-18232		Cover, End 400mm, Right Side, Gear End				14A

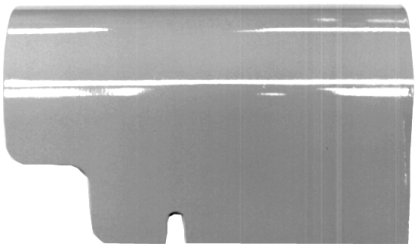

		A-18234		Cover, End 400mm, Right Side, Motor End				12A
		EE304780		Cover, Intermediate Small Overfeed(A-18174) (400mm)				13
		EE340042-1		Dial Storage Tensor for Epic E Creel with Mounting Brackets and Hardware, with Roller		VE21		01B1
		EE340042		Dial Storage Tensor for Epic E Creel with Mounting Brackets & Hardware, without Roller				01B
		EE340043		Dial Storage Tensor for Verdol 400 Creel with Mounting Bracket & Hardware, without Roller				01C
		EE340043-1		Dial Storage Tensor for Verdol 400 Creel with Mounting Bracket, Roller, & Hardware				01D
		EE401661V		Disc, Ceramic, for Cabler Cap and Brake		VE08		10
						VE08A		10
		EE401620V		Disc, Chrome Tension, for Cabler Cap and Brake		VE08		10
		EE401620V		Disc, Chrome Tension, for Cabler Cap and Brake		VE08A		09
		EE401830-1V		Double Tension Device (Capsules not included)		VE13		01
						VE14		44
						VE15		36
						VE16		22
		EE340025		Down Tube Assembly with Epic Air Deflection Device		VE23		01
		EE380060		Down Tube with Ceramic Eyelet, Collars and Washers for Verdol 450				02
		EE320000		EpiMag Stabilization Kit with Cutter (Complete Inner & Outer) With Anti-Wrap Device		VE05A		00
		EE320000-1		EpiMag Stabilization Kit with Cutter (Complete Inner & Outer) Without Anti-Wrap Device		VE05A		00
		MV-1020CR		EyeBolt, C Creel		VE15		13
		EE309069-2		Eyelet, Flanged Red		VE21		09
								02

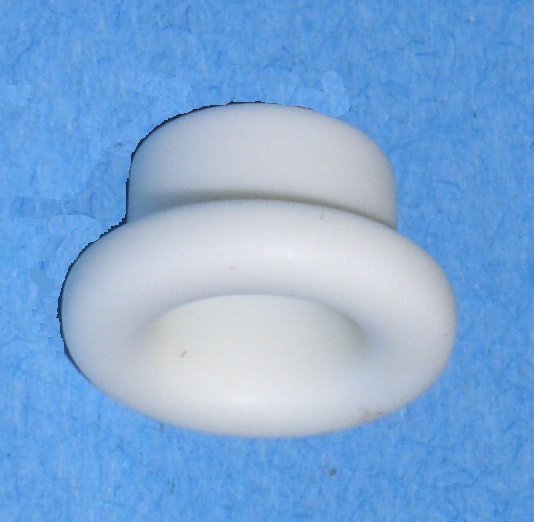

		EE309068		Eyelet, Flanged, White				03

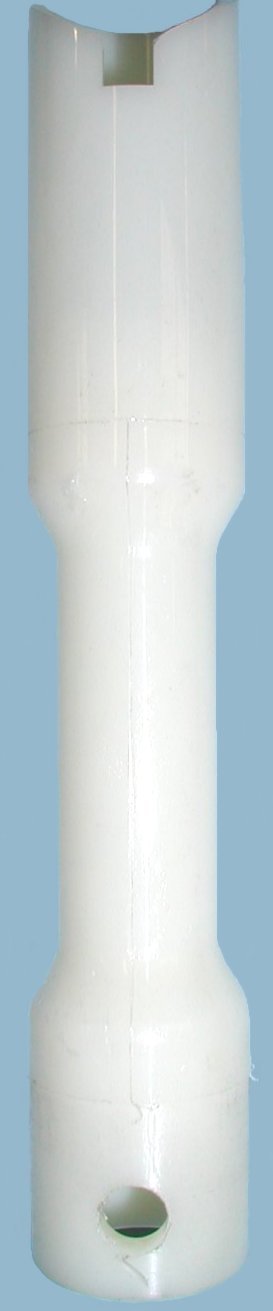

		EE480080-3V		Feed Bushing, 8" Manual		VE26		03
		EE380029		Foam Piece for Magnet Pocket (Inner and Outer)		VE05A		16
		EE480004V		Friction Cuff only for Epic Deflection Tube		VE23		08
		EE304823		Grease, R Axle Spline (30CC Syringe) (Not Shown)		VE01		81
		EE304821		Grease, R Axle Spline, Kluber (1 Kilo Can) (Not Shown)				82
		EE304820V		Grease, Spindle Bearing, Kluber, 1 Kilo (Not Shown)				80
		EE302546		Guard, Spindle Yarn		VE06		06
		EE340013		Guard, Spindle Yarn Choke, 120MM OD (For Solid Disc Only)		VE05A		07
						VE06		05
		EE309029		Guide, Threaded Pigtail Only		VE09		15
		A-18280		Handle, Yellow Vinyl for E Creel		VE14		16
		EE480006V		Hex Jam Nut (used on Single Tension Device)		VE13		09
		MV-1028CR		Holder, C Creel Hardwood Tube		VE15		09
		MV-1027CR		Holder, C Creel Yarn Guide				04
		EE380047		Housing, Top Bearing, with O-Rings for EpiMag SA-III		VE05A		08
		EE480424V		Insert, Nylon Locking, for UniTensor		VE08		18
		A-18370		Lock Nut, Nylon Insert, 5/16", Z/P		VE14		28
								14
		A-18436V		Lock Nut, Nylon Insert, Z/P, 5mm		VE08		16
		A-18357		Lock Washer, Spring, 3/8", Z/P		VE14		09
								31
						VE15		32
								06
								21
						VE16		11
		A-18364		Lockwasher, 1/4, Z/P		VE14		25
								23
						VE16		07
		EE432503V		Lockwasher, Split, 8mm		VE10		17
		EE304822		Loctite RC/609-21, 10 ml. Bottle for securing spindle bearings (Not Shown)		VE01		83
		EE305534		Magnet (For Inner and Outer)		VE05A		05
		EE340019		Magnetic Stabilization Assembly, Outer, for EpiMag SAII/SAIII (Without Anti-Wrap Device)				00A
		EE340020		Magnetic Stablization Assembly, Inner, for EpiMag SAII/SAIII				00C
		EE340019-2		Magnetic Stablization Assembly, Outer, for EpiMag SAII/SAIII (With Anti-Wrap Device)				00B
