Items without an OEM No. Reference: Mounting Bracket through Wrench
Epic Offers the following items for ICBT and/or Verdol machines:
OEM NO.	EPIC PART#		DESCRIPTION		ASSY		POSITION
		EE380001-2		Mounting Bracket (Plastic) with small eyelet for Double Tension Device		VE13		03
						VE14		43
		EE440272V		Multi-Tension Device, Manual, Flat Cap, 33mm		VE26		01
		A-18358		Nut, Hex , 3/8" Z/P		VE14		10
								21
								32
								39
						VE15		16
								33
								07
								22
						VE16		12
		A-18365		Nut, Hex, 1/4", Z/P		VE14		24
						VE16		08
		EE433502V		Nut, Nylon Insert Lock, 5mm		VE08A		15
		EE401834V		Nut, Plastic (Fixing Screw) 14X1.5mm		VE13		08
		EE435088V		O-Ring 32 X 1.5		VE05A		13

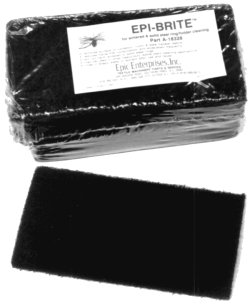

		A-18328		Pads, EpiBrite for removing scratches on pots and balloon rings (100 pads/case)		VE07		19
		EE302190		Pad, Foam, Lined, 237mm OD X 67.75mm ID X 51mm Thick, Gray (9 1/3" X 2 33/50" X 2")		VE07		03A
		EE302221		Pad, Foam, Unlined, 356mm OD X 9.5mm ID X 19mm Thick, White (14" X 3/8" X 3/4")		VE14		33
		EE434015V		Pin, Spring Tension 4X20		VE10		12
		EE380070		Plate, Latch for E Creel		VE14		15
		A-18367		Plate, Slide for E Creel Latch				11
		EE340015		Pocket, Inside Magnet, for EpiMag (Without Magnets)		VE05A		03
		EE340014		Pocket, Outside Magnet, for EpiMag (Without Magnets)				02
		EE401981V		Post, Flanged Ceramic Guide, for Centering Post and for Extended Bottom of Unitensor		VE08		21A
								08
		EE303260-2		Pot, Stainless Side, 290H240, for 450 (2.062" Hole)		VE07		18A
		EE301323V		Pre-Take-Up/Overfeed Assembly , 31 Flute Chrome "Volkmann-Type" without Locking Collar		VE11		11
		EE301304V		Pre-Take-Up/Overfeed Assembly, 24 Flute Ceramic "Epic-Type"
		EE301322V		Pre-Take-Up/Overfeed Assembly, 24 Flute Ceramic "Volkmann Type" without Locking Collar
		EE301303V		Pre-Take-Up/Overfeed Assembly, 24 Flute Chrome "Epic Type"
		EE301326V		Pre-Take-Up/Overfeed Assembly, 24 Flute Ceramic "Volkmann Type" with Locking Collar
		EE301321V		Pre-Take-Up/Overfeed Assembly, 24 Flute Chrome "Volkmann Type" , without Locking Collar
		EE301325V		Pre-Take-Up/Overfeed Assembly, 24 Flute Chrome "Volkmann Type" with Locking Collar
		EE301311V		Pre-Take-Up/Overfeed Assembly, 31 Flute Ceramic "Epic Type"
		EE301327V		Pre-Take-Up/Overfeed Assembly, 31 Flute Ceramic "Volkmann Type" with Locking Collar
		EE301324V		Pre-Take-Up/Overfeed Assembly, 31 Flute Ceramic "Volkmann Type" without Locking Collar
		EE301308V		Pre-Take-Up/Overfeed Assembly, 31 Flute Chrome "Epic Type"
		EE301300V		Pre-Take-Up/Overfeed Assembly, Male Half and Fixing Ring, Volkmann Type				10
		EE301300-1V		Pre-Take-Up/Overfeed Assembly, Male, without Fixing Ring, Volkmann Type				09
		EE301320V		Pre-Take-Up/Overfeed Male Half, Volkmann Type				03
		EE301306V		Pre-Take-Up/Overfeed Shell , 31 Flute Ceramic				02
		EE301305V		Pre-Take-Up/Overfeed Shell , 31 Flute Chrome
		EE301302V		Pre-Take-Up/Overfeed Shell Only, 24 Flute Ceramic Coated
		EE301301V		Pre-Take-Up/Overfeed Shell Only, 24 Flute Chrome
		EE301310V		Pre-Take-Up/Overfeed, Female Half				01
		EE301329V		Pre-Take-Up/Overfeed, Male & Female Halves Only, Volkmann Type				08
		EE309125		Pulley, Heavy Duty Tape Tension, for ICBT and Verdol 450		VE17		03A
		EE309074		Rebuild Epic or ICBT Storage Tensor		VE21		05A
		EE309124		Repair Threading Channel with 10mm Stainless Steel Tube and Rebalance; 260 X 175mm Disc Assembly, ICBT N and Verdol RM & F44		VE18		00
						VE19		00
						VE20		00F
		EE480143V		Ring (Spacer), Distance for Cabler Cap Tension Device		VE08		07
						VE08A		05
		EE480747-1		Ring, Centering, 73mm, for Manual Multi-Tension Device		VE26		02
		EE434205V		Ring, External Retaining, 17X1		VE19		34
		EE301319V		Ring, Fixing, for Pre-Take-Up/Overfeed Assembly		VE11		06
		EE305546-1		RM Spindle, New, Complete with 260 X 160 Disc Assembly		VE18		01
		EE380092-1		Rod Wiper Block Assembly LH		VE10		31
		EE380092		Rod Wiper Block Assembly RH
		EE380082		Rod, Intermediate Traverse, 16 X 1996mm, Chrome Plated for Model 500				08A
		EE380038		Rod, Traverse Guide, 10 X 365mm, Chrome Plated				24
		EE430503V		Screw, Hex Head Cap 5X10		VE10		13
		EE430507V		Screw, Hex Head Cap 5X70		VE08A		12
		EE437316V		Screw, Hex Head Cap 5X80		VE08		12
		A-18377		Screw, Hex Head Cap, 1/4" x 1/2" ZP		VE16		06
		EE330602		Screw, Hex Head Cap, 10 X 40		VE10		29
		A-18375		Screw, Hex Head Cap, 3/8" x 1", Z/P		VE16		16
		A-18374		Screw, Hex Head Cap, 3/8" x 3/4"				13
		A-18376		Screw, Hex Head Cap, 3/8" x 3/4", Z/P				10
		A-18371		Screw, Hex Head Cap, 5/16" x 3/4"		VE14		27
		EE431502V		Screw, Hex Socket Cup Point Set 6X10		VE10		18
		EE401020V		Screw, Hex Socket Cup Point Set, 5X8		VE11		07A
						VE26		05
		EE431225V		Screw, Hex Socket Flat Point Set 5X8		VE11		07
		EE331218		Screw, Hex Socket Flat Point Set, 8X16mm (Used with EE380078 Package Centering Adaptor)		VE12		07
		EE430210V		Screw, Socket Head Cap 5X10		VE18		27
						VE19		19
		EE430244V		Screw, Socket Head Cap 8X40		VE10		16
		EE401015V		Screw, Socket Head Cap, 5X12		VE20		09
		EE309053		Seal for Traverse Rod at Gearbox, 5/8"		VE10		32
		A-18044		Shaft, 1X24"		VE14		05
		A-18046		Shaft, 3/4" X 24"				06
		EE380200		Shell Only, PTU/Over Feed, 14 Flute, Open-Type, Chrome, for ICBT		VE25		04A
		EE440008V		Single Tension Device (Capsules not included)		VE13		12
		A-18368		Spacer for E Creel Latch		VE14		12
		A-18058		Spacer, Heavy Wall		VE16		09
		EE340053-1		Spindle Assembly, ICBT N, with Upper Bearing Housing Assembly, without Spindle Disc Assembly		VE20		18A
		EE309122		Spindle Assembly, ICBT N, with Upper Bearing Housing Assembly, without Spindle Disc Assembly (FOR EXCHANGE)				00
		EE309107		Spindle, Rebuild Customer Verdol N		VE04		07
		EE305544-1		Spindle, RM, New for 260 X 160 Disc Assembly without Disc		VE18		01B
		EE305544		Spindle, RM, New for 260 X 175 Disc Assembly without Disc				01C
		MV-1019CR		Spring, C Creel Extension		VE15		15
		MV-1014CR		Spring, C Creel Small Latch				26
		EE301316V		Spring, Pre-Take-Up/Overfeed Plate		VE11		04
		EE380121		Spring, S/S Torsion		VE21		08
		EE401858V		Spring, Tension (Yellow)		VE08		06
						VE08A		04
		EE401860V		Spring, Tension , (Silver)		VE08		11
						VE08A		11
		EE401859V		Spring, Tension, (Black)		VE08		09
						VE08A		08
		EE480256V		Stud, Adjusting, for UniTensor		VE08		19
		A-18057		Support, Channel, 4"		VE16		15
		EE380041		Support, Intermediate Guide,for Traverse		VE10		26
		A-18043		Support, Main Creel (Post)		VE14		01
		EE480432V		Tool, Speed Adjusting, for UniTensor		VE08		23
		EE480002V		Top Numbering Strip for Tension Device		VE13		07
		EE320001		Traverse System 120 Position for Model 400 Verdol		VE10		01
		EE320003		Traverse System 84 Position for 500 Gauge Verdol				01
		EE320002		Traverse System 96 Position for Model 400 Verdol				01
		EE401875V		Traverse Thread Guide Assembly Complete, 3.0mm , Heavy Duty				01
		EE401878V		Traverse Thread Guide, 3.0mm with Bracket, Heavy Duty				05
		EE380061		Tube Only, Down, for Model 450 Cabler		VE23		06
		EE380080		Tube, Cam Connecting for 500, 5/8" x 670mm		VE10		09
		EE380101		Tube, Cam Connecting Traverse for 400, 5/8" X 515mm				09
		EE380039		Tube, End Guide with Bushing for Traverse for 400, 5/8" Dia. X 956mm Long				25
		EE380083		Tube, End Traverse with Bushing for 500, 5/8" Dia. X 1300mm Long				25
		EE380081		Tube, Starting Traverse, 5/8" X 1294mm for 500				30
		EE380102		Tube, Starting Traverse, 5/8" x 1933mm for 400				30A
		EE380044		Tube,Traverse Guide,16 X 1598mm, Chrome Plated for Model 400				08
		MV-1026CR		U-Bolt, C Creel		VE15		19
		EE480016V		Washer, Foam Rubber, for Cabler Cap Tension Device		VE08		13
						VE08A		13
		EE401877V		Washer, Regular Flat, 5mm		VE08A		16
						VE10		07
		EE431802V		Washer, Regular Lock, B, 10mm		VE10		28
		EE432000V		Washer, Spring Wave, 6mm		VE08		20
		EE480436V		Wrench, Manual Nut Driver, for UniTensor		VE08		24
